A4Pro Lightweight Miniature Quad Sensor Gimbal Camera

CATEGORY PUBLISH UPDATE VIEW

Camera & Other Accessories 2025-12-19 16:39:15 2025-12-19 19:26:47 320

Details

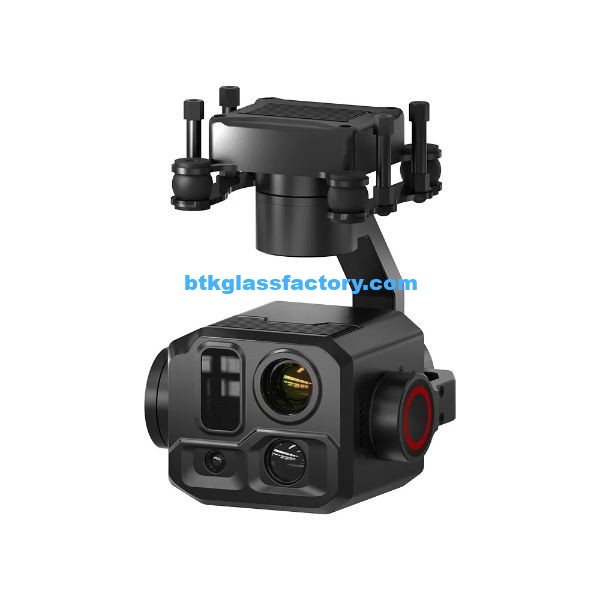

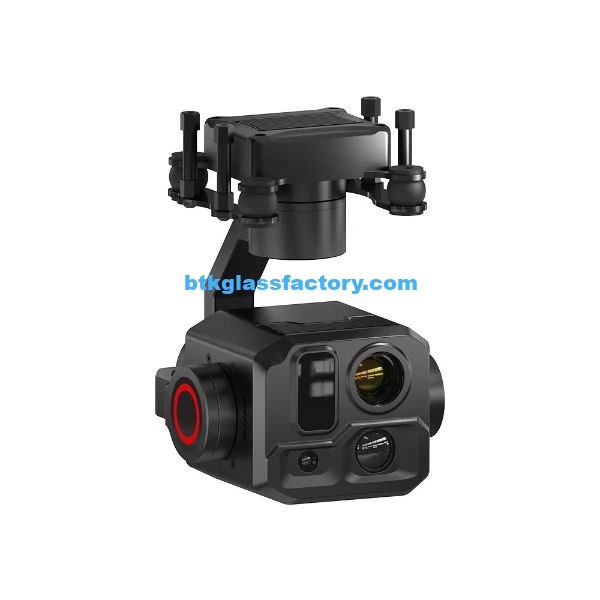

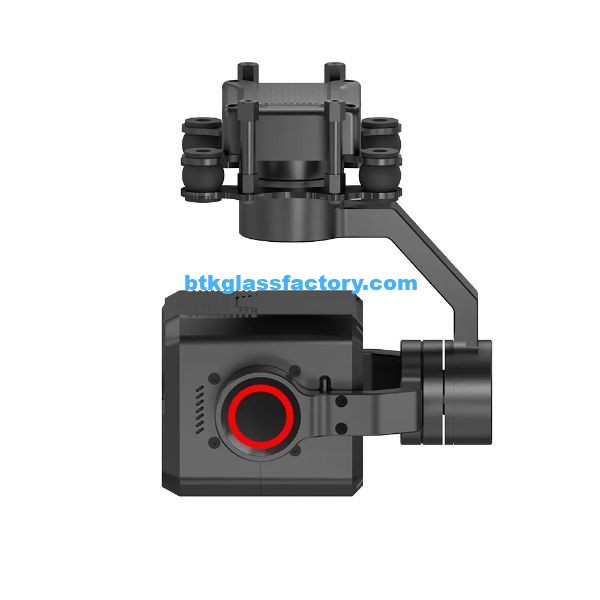

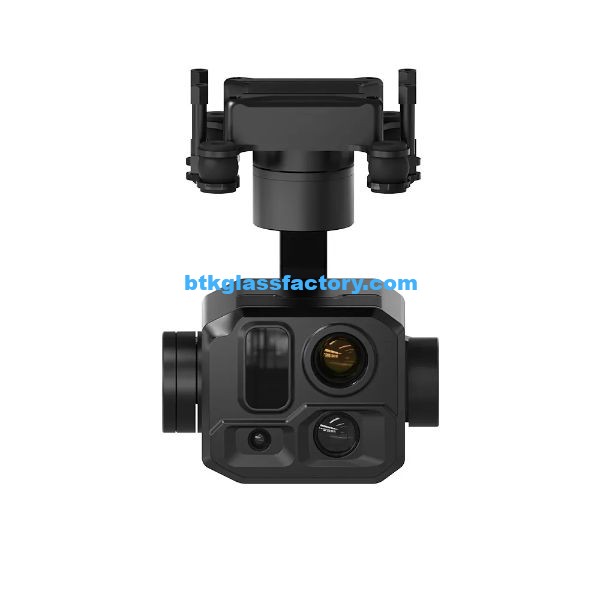

A4Pro Lightweight Miniature Quad Sensor Gimbal Camera for Drone/UAV Accessories

A4Pro quad sensor gimbal camera features 8K resolution, 48MP, advanced 3-axis gimbal stabilization, AI target detection, thermal imaging, and rugged aluminum design for harsh environments.

>>PARAMETERS

Material: Aircraft aluminum

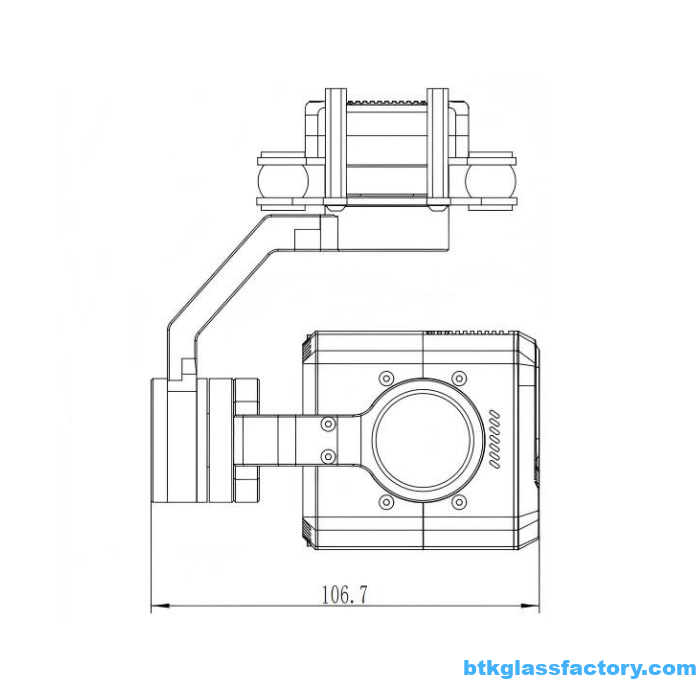

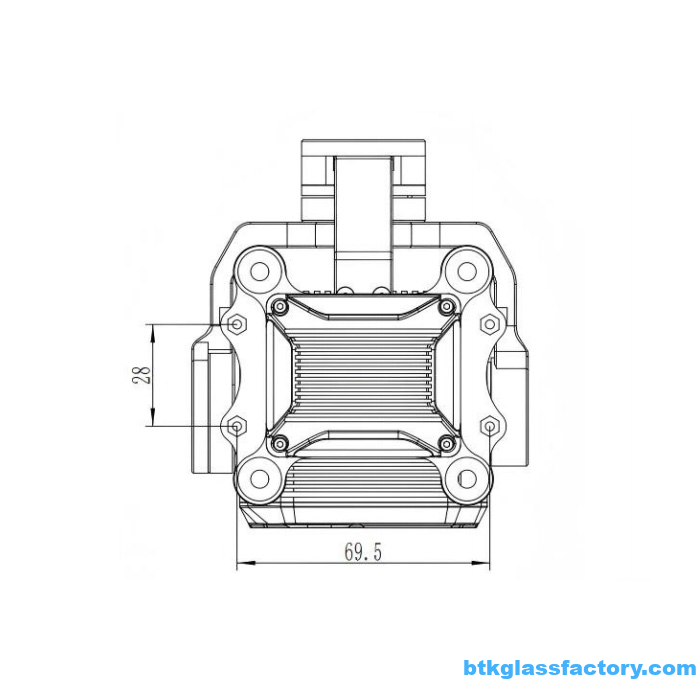

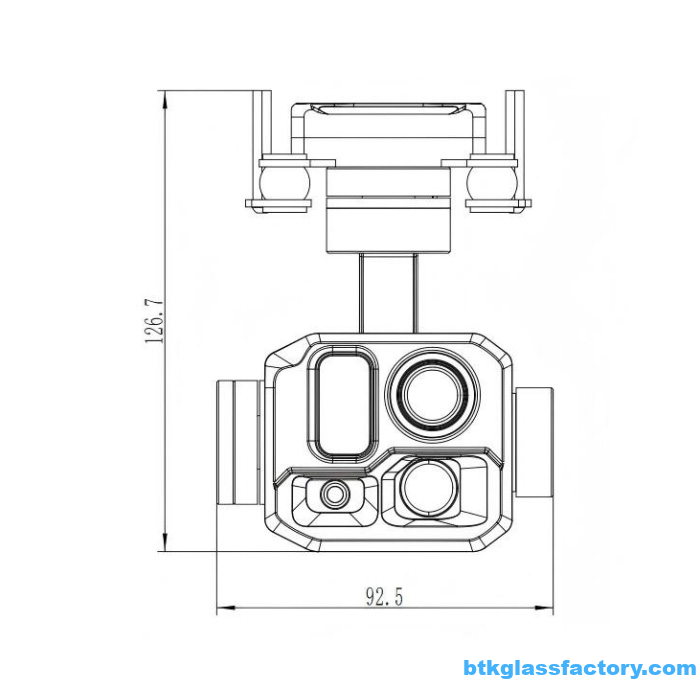

Size: 106.7 (L) × 92.5 (W) × 126.7 (H) mm

Weight: 470 ± 10 g

Control Mode: Speed control, Angle control

Control Signal: S.BUS, TTL UART, TCP, UDP

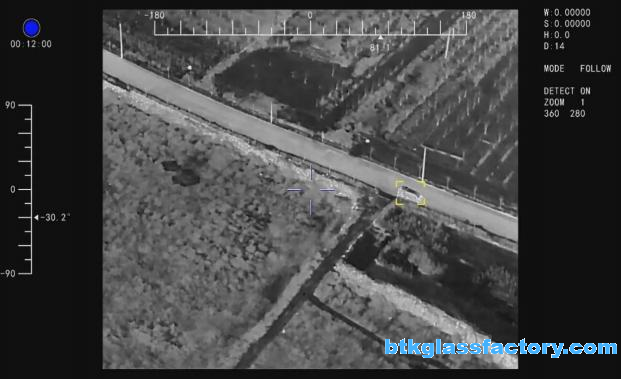

A4Pro is a quad-sensor EO/IR drone gimbal camera engineered for high-precision inspection, surveillance and long-range reconnaissance. It features an 8K/48MP visible-light camera with motion-vision autofocus and real-time HDR, ensuring accurate color capture even during high-speed flight. The uncooled 13.5 mm IR module delivers long-range thermal detection with switchable black-hot/white-hot/color palettes.

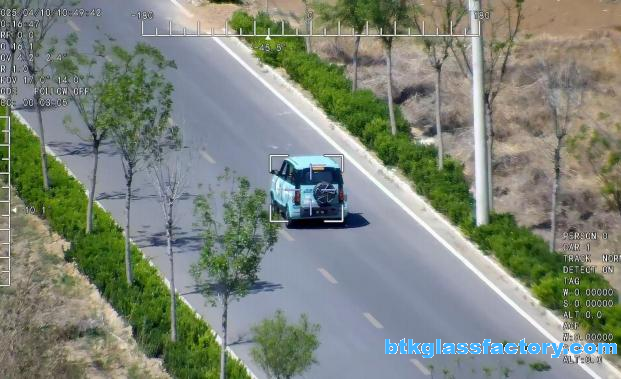

A high-performance AI chip with 10 TOPS NPU enables automatic detection and recognition of vehicles, people and multiple targets simultaneously.

The 3-axis orthogonal stabilized gimbal provides ultra-smooth imagery, compensating for micro-movement with high-frequency motor control.

Built from CNC-machined aviation aluminum, the payload offers superior heat dissipation, weather resistance and vibration isolation, operating reliably from –20°C to 60°C.

Its integrated control module supports one-key functions, robust electrical protection and broad platform compatibility, making A4Pro ideal for ISR missions, emergency response, industrial inspection and mapping.

Previous Back Next

Related Products

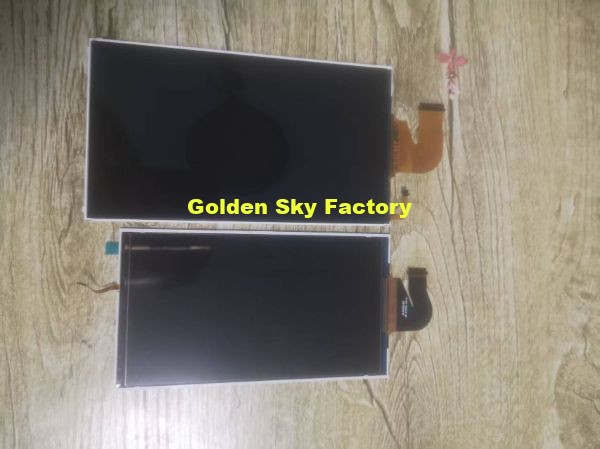

CZ356 5.5/6.2 Inch LCD Game Screen Switch Screen Accessories
